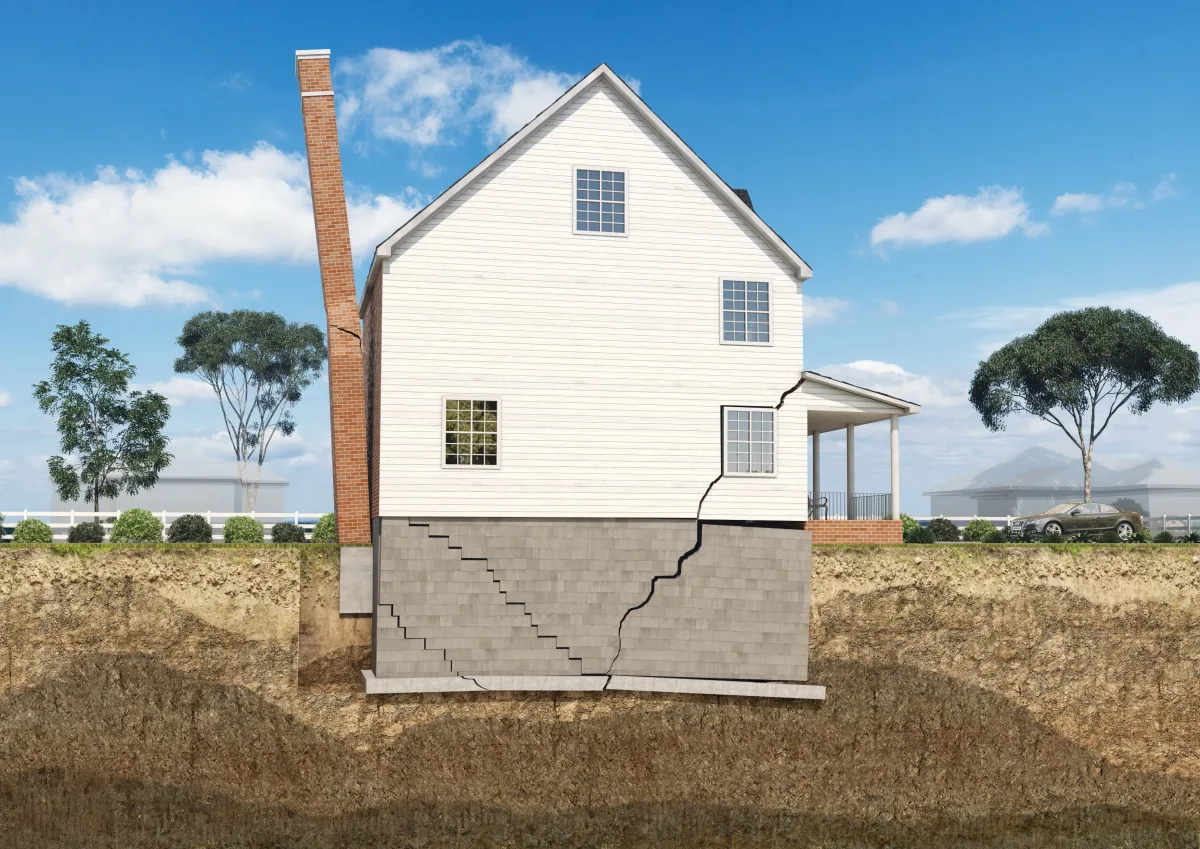

Why Does My Foundation Separate?
Image source: Bing (Web (fair-use with source credit))
Have you noticed a new crack in your basement wall or a floor that doesn't quite feel level anymore? These are often the first signs that something might be happening beneath your home. Understanding why does my foundation separate is key to addressing potential structural issues before they become serious.
We've found that many homeowners worry about these visible changes, and rightly so. For instance, a foundation that moves more than 1/4 inch vertically over a 10-foot span can indicate significant settlement, a factor often cited by structural engineers. Let's break down what's going on and what you can do about it.
Quick Answer
Foundation separation happens primarily due to soil movement around your home. This movement, often called settlement, occurs when the soil beneath your foundation expands or contracts due to changes in moisture or temperature. This differential settlement, where one part of the foundation moves more than another, puts stress on the structure, causing cracks and separation.
Proper drainage, understanding soil type, and addressing water issues are crucial preventative measures.
Understanding Foundation Settlement: The Big Picture
Your home's foundation is like its bedrock, designed to distribute the building's weight evenly onto the soil. When that soil underneath changes, becoming wetter, drier, or less stable, it can shift. This shift is what we call foundation settlement.
It's a gradual process, but even small changes can create significant stress on your foundation walls and the structure above.
Imagine a table with one leg slightly shorter than the others; it wobbles. Foundation settlement is similar, but on a much larger scale, affecting your entire house. Different types of soil react differently to moisture and temperature fluctuations.
Clay soils, for example, are notorious for expanding significantly when wet and shrinking dramatically when dry. This constant cycle of expansion and contraction can push and pull at your foundation unevenly.
Spotting the Signs: What Separation Looks Like
Catching foundation separation early is crucial. Often, the first indicators aren't gaping holes but subtle changes you might overlook. Keeping an eye out for these visual cues can help you address problems when they're smaller and easier to fix.

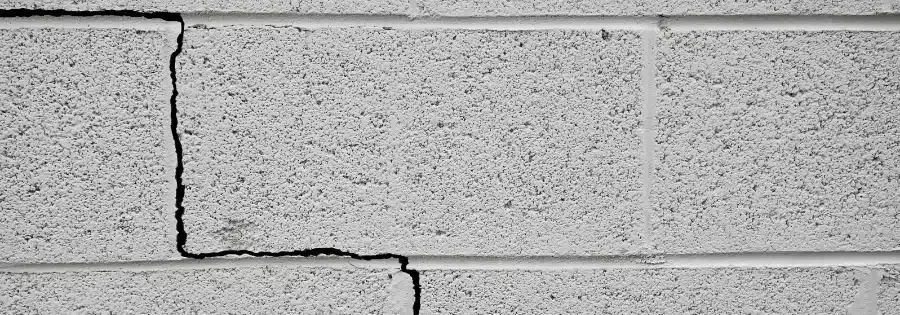

Stair-Step Cracks and Wall Gaps
One of the most common and concerning signs of foundation settlement is the appearance of stair-step cracks, particularly in masonry walls like those in basements or crawl spaces. These cracks follow the mortar lines between bricks or concrete blocks because the mortar is usually weaker than the masonry itself. As the soil shifts, it pulls the foundation walls apart, creating these diagonal breaks.
Image source: Bing (Web (fair-use with source credit))
You might also notice small gaps forming between your foundation walls and the floor above, or around window and door frames. These gaps are direct evidence that one section of the foundation has moved lower than another, leaving a void.
Uneven Floors and Sticking Doors
If your floors start to feel sloped or you find yourself tripping on a section that suddenly seems lower than the rest, it's a strong indicator of differential settlement. The house is essentially sinking unevenly. This unevenness puts stress on the entire structure, and it doesn't take long for this to affect other parts of your home.
Doors and windows can also become difficult to open or close. As the foundation shifts, it can warp the framing around these openings, causing them to stick or jam. You might even see hairline cracks forming above door frames or along baseboards.
Moisture and Water Intrusion Clues
Water is a primary driver of soil movement and foundation issues. If you notice dampness in your basement or crawl space, water stains on walls, or even the smell of mildew, it could be a sign that your foundation is compromised. Cracks, even small ones, can act as entry points for groundwater.
Persistent moisture can also indicate a problem with your home's exterior drainage. If water isn't flowing away from your foundation effectively, it saturates the soil, leading to expansion and increased hydrostatic pressure. This pressure can push against your foundation walls, exacerbating any existing weaknesses.
Common Culprits Behind Foundation Separation
Understanding what causes foundation separation is the first step to solving it. It's rarely just one thing, but usually a combination of environmental factors and your home's construction.

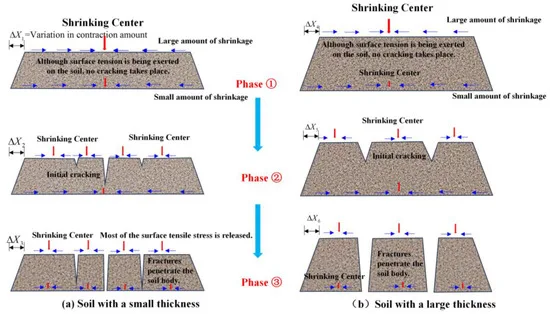

Soil Issues: Expansion, Contraction, and Erosion
The soil your foundation rests on is the most critical factor. As mentioned, different soil types react uniquely to moisture and temperature.
- Expansive Soils: High clay content soils swell significantly when they absorb water and shrink when they dry out. This cycle can exert immense pressure on foundations, lifting them when wet and causing them to drop when dry.
- Compacted Soils: If the soil was not properly compacted when your house was built, it can settle over time under the building's weight, leading to a gradual sinking.
- Erosion: Water can wash away soil from around and beneath your foundation, especially in areas with poor drainage or on sloped properties. This erosion creates voids, leaving sections of the foundation without adequate support.
Image source: Bing (Web (fair-use with source credit))
Drainage Problems: The Silent Killer
Your home's drainage system is designed to protect your foundation. When it fails, problems can arise quickly.
- Poor Grading: If the ground around your house slopes towards the foundation instead of away from it, water will naturally collect at the base.
- Clogged Gutters and Downspouts: Gutters that are full of leaves and debris can overflow, dumping large amounts of water right next to your foundation. Downspouts that aren't extended far enough away from the house also contribute to the problem.
- Inadequate French Drains: If your property has a French drain system, it needs to be properly installed and maintained to effectively channel water away.
Hydrostatic Pressure and Water Table Woes
When the soil around your foundation becomes saturated, it can exert significant outward force, known as hydrostatic pressure. This pressure is like water pushing against your basement walls from the outside. In areas with a high water table, this pressure can be constant, especially during rainy seasons or after snowmelt.
This constant push can force water through even tiny cracks in your foundation, and over time, it can stress the concrete or block structure, leading to widening cracks and eventual separation. It's a force that many homeowners underestimate until water starts seeping into their basement.
Overlooked Factors: Tree Roots and Plumbing Leaks
Sometimes, the causes are less obvious than soil or drainage.
- Tree Roots: Large trees planted too close to your house can pose a threat. Their roots seek water and nutrients, and they can grow into and through foundation structures, causing damage. More subtly, thirsty tree roots can also draw significant moisture out of the soil directly around your foundation, leading to soil shrinkage and settlement.
- Plumbing Leaks: Leaks from underground water or sewer pipes can saturate the soil beneath your foundation, causing localized expansion and settlement. This is especially problematic if the leak is slow and undetected for a long time, consistently weakening the soil. Our research indicates that leaks undetected for over a year can cause substantial soil destabilization.
Your Foundation Separation Action Plan
When you spot the signs of foundation separation, it's natural to feel a bit anxious. The good news is that by following a clear plan, you can diagnose the problem and get it fixed. This isn't a DIY job for major issues, but understanding the steps helps you communicate effectively with professionals.
Our research shows that homeowners who actively participate in the diagnostic process often get more accurate and cost-effective repairs. The key is to move from observation to assessment, and then to informed action.
Step 1: Initial Inspection and Observation
Start by thoroughly examining your home for any visible signs of foundation issues. Note the location, size, and type of cracks. Are they horizontal, vertical, or stair-stepped?
Where do they appear, basement walls, exterior block, drywall? Also, pay attention to other symptoms like sticking doors or uneven floors.
Document everything with photos and notes. This detailed record will be invaluable when you consult with experts, helping them understand the progression of the problem. Try to establish a timeline for when you first noticed these issues, as this can offer clues about the underlying cause.
Step 2: Assessing Soil and Drainage Conditions
Next, turn your attention to the area around your home. How is the ground sloped? Does water pool anywhere near your foundation after rain?
Check your gutters and downspouts to ensure they are clear and directing water at least 5 to 10 feet away from the house.
Consider the soil type in your area. If you live in a region known for expansive clay soils, this is a major factor. Also, look for any signs of soil erosion or large tree roots encroaching on your foundation.
These external factors play a significant role in soil stability.
Step 3: When to Call in the Pros (Engineers and Specialists)
For anything beyond minor hairline cracks, it's time to bring in the experts. A qualified structural engineer can provide an unbiased assessment of your foundation's condition. They have the tools and knowledge to accurately diagnose the cause of settlement and recommend the best course of action.
Don't hesitate to get multiple opinions if you're dealing with a complex situation. Choosing the right contractor for repairs is just as important as getting the correct diagnosis. Look for professionals with a proven track record and good reviews, specifically for foundation repair work.
Repairing Foundation Separation: Options and Considerations
Once the cause of your foundation separation is identified, the next step is to implement the right repairs. The chosen solution will depend heavily on the specific problem, from soil instability to water intrusion. The goal is not just to patch the symptoms but to address the root cause for long-term stability.
Foundation Stabilization Techniques
When settlement has occurred, stabilization methods are often necessary.
- Push Piers and Helical Piers: These steel piers are driven deep into the ground until they reach stable soil or bedrock. Hydraulic jacks then lift the foundation to its original position, and the piers are secured to support the load.
- Underpinning: This is a broader term that can include pier installation or other methods to strengthen and expand the existing foundation, providing better support.
- Mudjacking (Slabjacking): For concrete slabs, a grout mixture can be injected beneath the slab to fill voids and lift settled areas. This is generally suitable for smaller areas of settlement.
Drainage System Improvements
Often, the most critical part of foundation repair involves managing water.
- Exterior Drainage: This can include installing French drains around the perimeter, regrading the landscape to slope away from the house, and extending downspouts.
- Interior Drainage: A sump pump system can be installed in basements or crawl spaces to collect and pump out any water that does enter.
- Waterproofing: Applying waterproof coatings to foundation walls can prevent moisture from penetrating the concrete, reducing soil saturation and hydrostatic pressure.
Waterproofing vs. Foundation Repair
It’s important to understand the difference. Foundation repair addresses the structural movement itself, lifting and stabilizing the foundation. Waterproofing focuses on preventing water from entering the structure through cracks or porous materials.
Often, a comprehensive solution involves both. You might stabilize the foundation first, then apply waterproofing to protect the repaired structure from future water damage. Manufacturer specifications for waterproofing materials often require a stable substrate to ensure proper adhesion and long-term performance.
Avoiding Future Foundation Separation
Repairing foundation separation can be a significant investment. Proactive measures can help prevent these issues from arising in the first place or prevent recurrence after repairs. Consistent maintenance is your best defense against future problems.
Smart Landscaping and Watering Practices
Your landscaping choices can directly impact your foundation's health. Avoid planting large trees or shrubs too close to your house, as their roots can damage foundations and draw excessive moisture from the soil. When watering your lawn or garden, ensure the water drains away from the foundation.
Overwatering can saturate the soil, leading to expansion and pressure.
Consider the slope of your yard. A gentle slope away from the house ensures that rainwater flows where you want it to, away from your foundation. Avoid creating depressions where water can collect.
This simple grading adjustment can make a huge difference in soil moisture levels.
Gutter and Downspout Maintenance
Your gutters and downspouts are your first line of defense against foundation water damage. Regularly clean them out, especially in the fall, to prevent blockages. Clogged gutters can cause water to spill over the sides, directly onto the soil around your foundation.
Ensure your downspouts extend far enough away from the house. The general recommendation is at least 5 to 10 feet, but in areas with heavy rainfall or clay soils, extending them even further can be beneficial. This simple step prevents concentrated water runoff at the foundation's base.
Regular Property Inspections
Make it a habit to walk around your property and inspect your foundation at least twice a year, ideally in the spring and fall. Look for new cracks, signs of moisture, or any changes in how your doors and windows operate. Early detection is key to addressing minor issues before they escalate into major foundation separation problems.
This routine check-up also extends to your drainage systems. Are your gutters clear? Is the ground sloping correctly?
These small efforts, performed consistently, can save you significant repair costs down the line and preserve your home's structural integrity.
Foundation Separation: Frequently Asked Questions
What are the first signs of foundation separation I should look for?
The earliest signs often include hairline cracks in walls, especially stair-step cracks in masonry, along with sticking doors and windows, or floors that feel uneven. Visible gaps around frames or where walls meet ceilings can also indicate separation.
Can minor cracks in my foundation be a serious problem?
Even small cracks can be serious if they indicate movement due to soil expansion or contraction. While hairline cracks might be cosmetic, deeper or wider cracks, or those that are growing, suggest a more significant structural issue that needs professional evaluation.
How do I know if my foundation needs repair versus just waterproofing?
Foundation repair addresses structural movement like settlement or cracking, often involving stabilization techniques. Waterproofing focuses on preventing water intrusion through existing openings or porous materials. If your foundation has shifted or cracked significantly, repair is needed first, followed by waterproofing to protect the stabilized structure.
Is foundation settlement always caused by water?
No, while water is a major contributor through soil expansion, contraction, and erosion, other factors can cause settlement. These include poorly compacted soil during construction, significant changes in the water table, and even the impact of tree roots growing near the foundation.
How long does foundation repair take?
The timeline for foundation repair varies greatly depending on the complexity of the issue and the method used. Simple crack injections might take a day or two, while extensive underpinning or pier installation can take several weeks. A structural engineer can provide a more accurate estimate after assessment.
